Installation of middle part

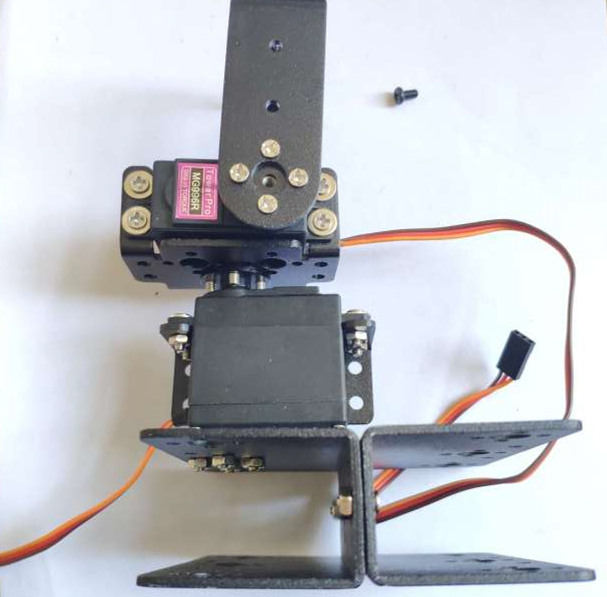

1.This is the base we just installed in the previous step. Next, we will install the middle part.

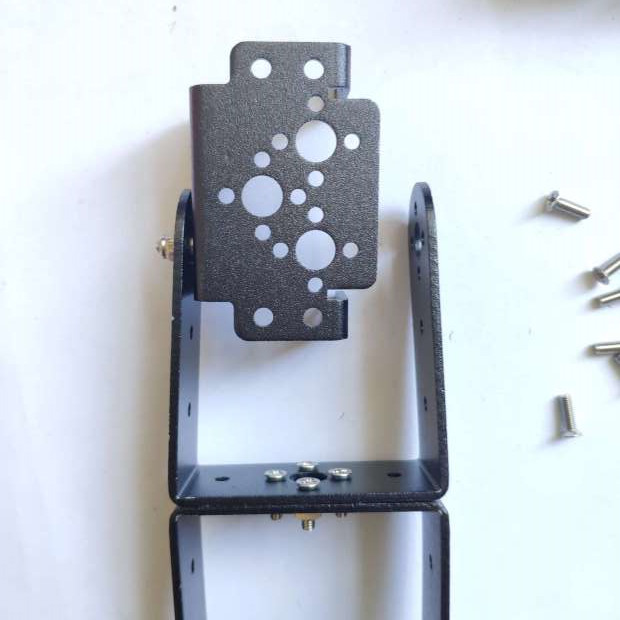

2.The middle part of the steering gear must be screwed on because it is very important to fix it

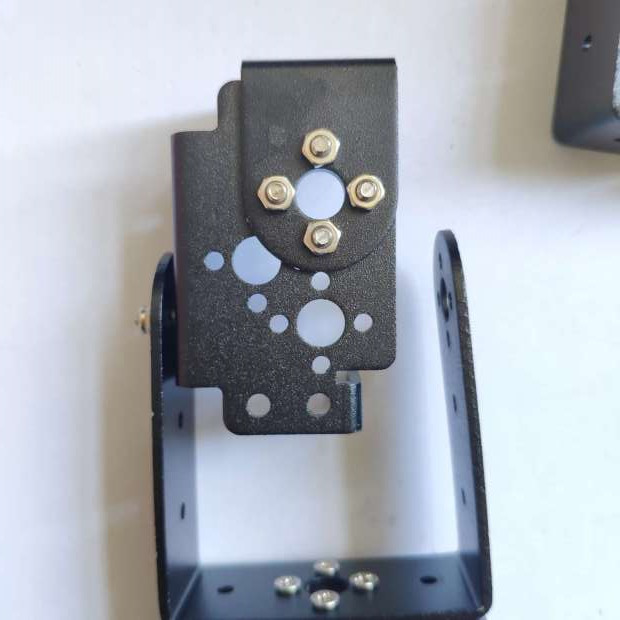

The place to screw is an L-shaped connecting bracket, which is the only one

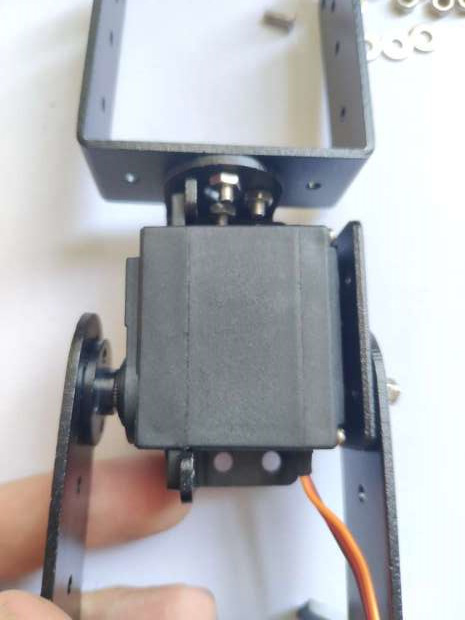

This is what the other side looks like

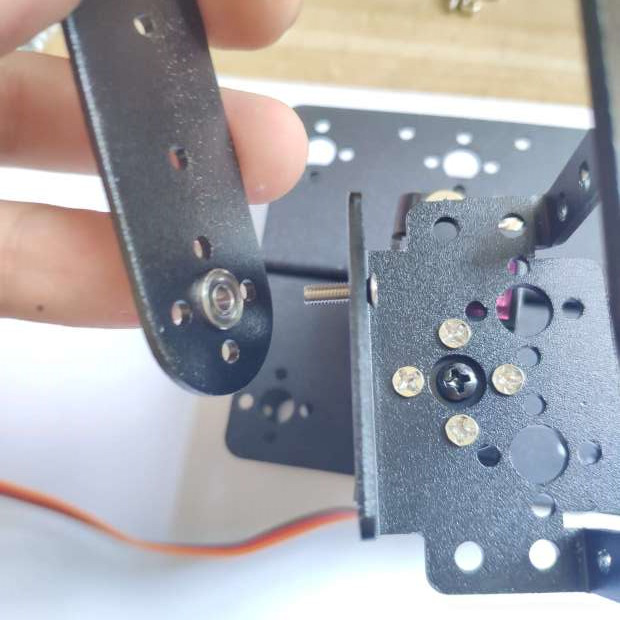

2.1 this is the detailed connection part of L-shaped support

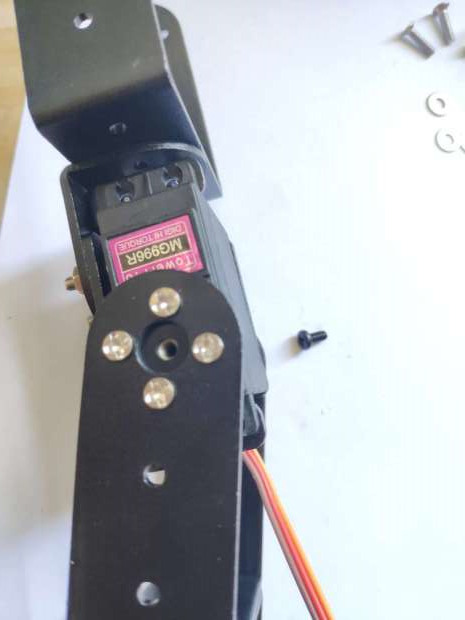

3.Installation of steering gear

Make sure to screw in the middle
