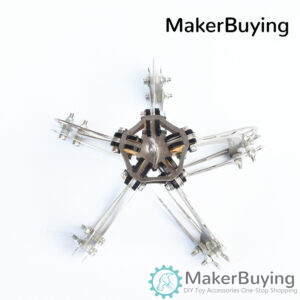

Full picture: pay attention to the details
1. Install a single paw
Prepare the materials (hexagon socket screws are long screws)
Install the first rocker arm to the claw (note the installation direction of the rocker arm)
When installing the rocker arm, pay attention to install a plastic gasket on each side (use a thick gasket)
Install another rocker arm in the same way. After installing the rocker arm, a single claw is installed successfully, and then install other claws according to the above method
2. Install the top of the mantis claw
First install like this

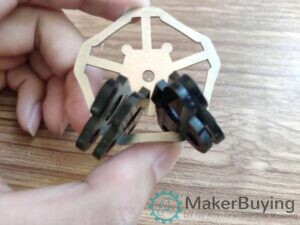

Then install another board
The appearance after installation
Put the longest M3 screw on the washer and insert it from the bottom
Put common washer and plastic washer on the top, then tighten with M3 lock nut, and finally twist into the M3 hanging nut, the top of the mantis claw is installed successfully
3. Connect the claw to the top
In the picture, the upper rocker arm is installed on the side of the top of the mantis claw, and a thin nylon washer (fixed with short screws) is installed in the middle.
Install the other rocker arm in the hole below the top of the mantis claw according to the above method

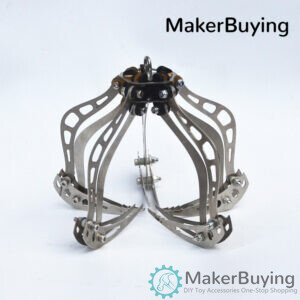

Install the remaining claws, and the mantis claws will be installed successfully
1. If the installation direction of the rocker arm is inaccurate, the mantis claw cannot be installed successfully, so we must pay attention to the direction when installing.
2. Twist the screws too tight, mantis claw activity is not smooth.
